Recommended reed relay models for security device applications: DIL series
| Product Series | Product model | Contact form | Coil voltage | Switch voltage | Withstand voltage | Installation type | Specification Sheet |
| DIL | DIL-1C05 | 1C | 5V, 12V, 24V | 175VDC | 1400VDC | Plug-in type | Download |
| DIL-2A05 | 2A | 5V, 12V, 24V | 200VDC | 1400VDC | Plug-in type | Download | |
| DIL-2C05 | 2C | 5V, 12V, 24V | 175VDC | 1400VDC | Plug-in type | Download |

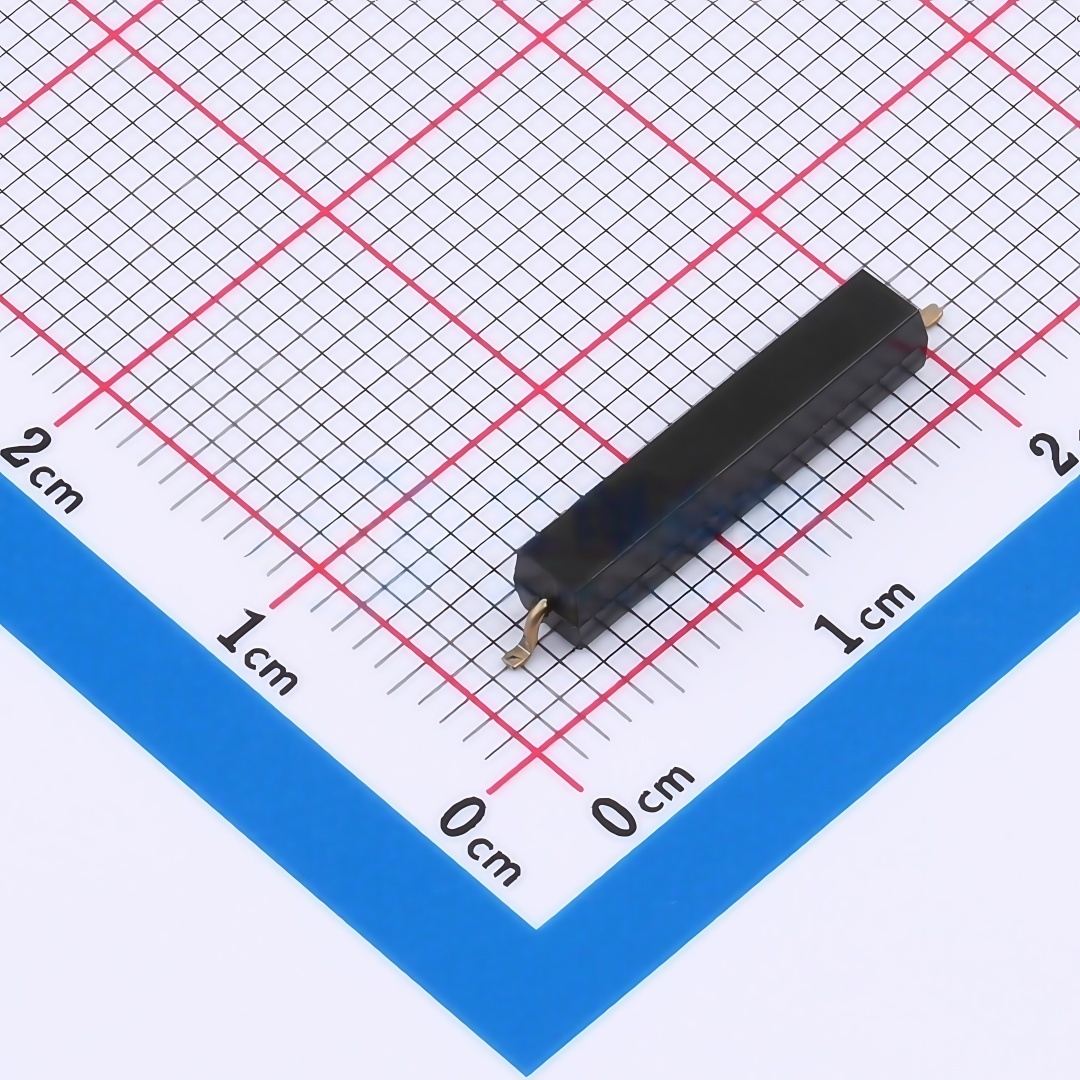

Recommended reed switch models for security‑device applications: MRS01 series, MRS02 series, MRS03 series, MRS06 series, MRS17 series.
| Product Series | Product model | Magnetic Sensitivity (AT) | Pin configuration | Specification Sheet |
| MRS01 | MRS01-A-3 | A:05-10 | 3:J-type pin | Download |
| MRS01-B-0 | B:10-15 | 0: Original reed switch with straight leads | Download | |
| MRS01-B-2 | B:10-15 | 2: Flat and bent SMD leads | Download | |
| MRS01-B-3 | B:10-15 | 3:J-type pin | Download | |
| MRS02 | MRS02-B-0 | B:10-15 | 0: Original reed switch with straight leads | Download |
| MRS02-B-2 | B:10-15 | 2: Flat and bent SMD leads | Download | |
| MRS02-C-2 | C:15-20 | 2: Flat and bent SMD leads | Download | |
| MRS03 | MRS03-B-0 | B:10-15 | 0: Original reed switch with straight leads | Download |
| MRS03-B-2 | B:10-15 | 2: Flat and bent SMD leads | Download | |
| MRS03-B-3 | B:10-15 | 3:J-type pin | Download | |
| MRS03-C-2 | C:15-20 | 2: Flat and bent SMD leads | Download | |
| MRS06 | MRS06-8-B | B: 10-15 | Download | |
| MRS06-8-H | H: 15-20 | Download | ||
| MRS17 | MRS17-C-0 | C:15-20 | 0: Original reed switch with straight leads | Download |
