Contact Form |
1 Form A |
| Contact Rated Load |
300A |
| Switching Voltage |
750VDC |
| Current Tolerance |
450A: 10min；600A: 1min；2000A: 1s |
| Contact Resistance |
≤1 mΩ（@20A） |
| Operate Time |
30Max.ms |
| Release Time |
10Max.ms |
| Dielectric Withstand |
3000VAC 50 Hz/60 Hz |
| Coil voltage |
12V DC、24V DC |
Products
产品中心
Number of views:
1000

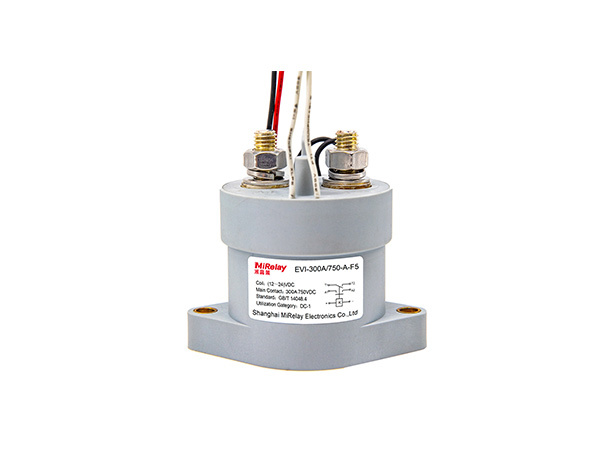

Products name: EVI-300
Category
Product Description：Products
Products info
Parameters
右侧内容显示
Product series:
EVI
Contact form:
1 Form A
Contact Rated Load:
300A
Switching voltage (max):
750 VDC
Package form:
Epoxy resin
auxiliary contact:
Yes
|
Contact Form |
1 Form A |
| Contact Rated Load |
300A |
| Switching Voltage |
750VDC |
| Current Tolerance |
450A: 10min；600A: 1min；2000A: 1s |
| Contact Resistance |
≤1 mΩ（@20A） |
| Operate Time |
30Max.ms |
| Release Time |
10Max.ms |
| Dielectric Withstand |
3000VAC 50 Hz/60 Hz |
| Coil voltage |
12V DC、24V DC |
