Contact Form |
1 Form A |
Contact Rated Load |
150A |
Switching Voltage |
750VDC |
Current Tolerance |
200A: 10min;300A: 1min;1000A: 1s |
Contact Resistance |
≤1 mΩ(@20A) |
Operate Time |
30Max.ms |
Release Time |
10Max.ms |
Dielectric Withstand |
3000VAC 50 Hz/60 Hz |
Coil voltage |
12V DC、24V DC |
Products
产品中心
Number of views:
1000

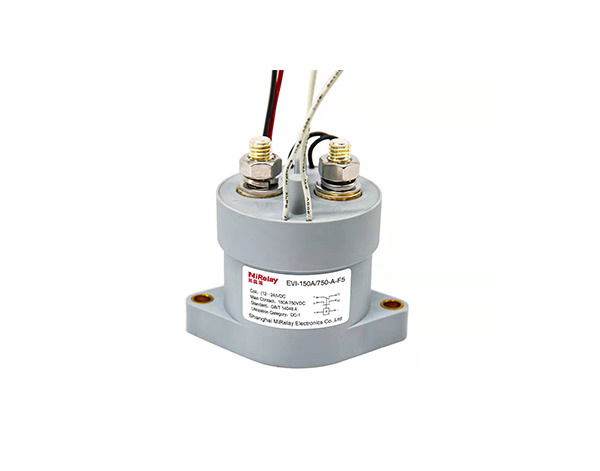

Products name: EVI-150
Category
Product Description:Products
Products info
Parameters
右侧内容显示
Product series:
EVI
Contact form:
1 Form A
Contact Rated Load:
150A
Switching voltage (max):
750 VDC
Package form:
Epoxy resin
auxiliary contact:
Yes
Contact Form |
1 Form A |
Contact Rated Load |
150A |
Switching Voltage |
750VDC |
Current Tolerance |
200A: 10min;300A: 1min;1000A: 1s |
Contact Resistance |
≤1 mΩ(@20A) |
Operate Time |
30Max.ms |
Release Time |
10Max.ms |
Dielectric Withstand |
3000VAC 50 Hz/60 Hz |
Coil voltage |
12V DC、24V DC |
