Contact Form |
1 Form A |
Contact Rated Load |
300A |
Switching Voltage |
1000VDC |
Current Tolerance |
450A: 60min;1200A: 30s;3000A: 0.6s |
Contact Resistance |
≤1 mΩ(@20A) |
Operate Time |
30Max.ms |
Release Time |
10Max.ms |
Dielectric Withstand |
4000VAC 50 Hz/60 Hz |
Coil Voltage |
12V DC、24V DC |
Products
产品中心
Number of views:
1000

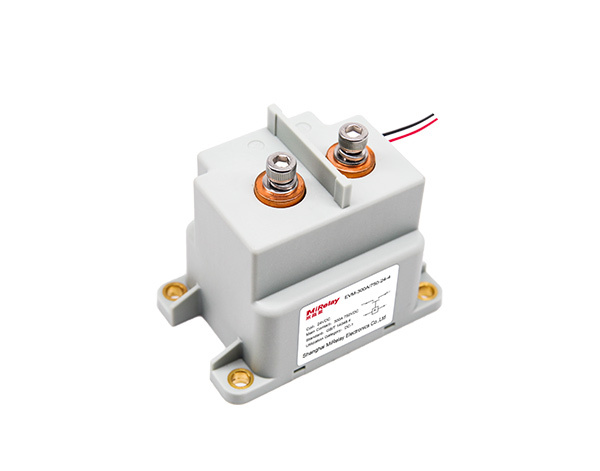

Products name: EVM-300
Category
Product Description:Products
Products info
Parameters
右侧内容显示
Product series:
EVM
Contact form:
1 Form A
Contact Rated Load:
300A
Switching voltage (max):
1000 VDC
Package form:
Ceramic package
auxiliary contact:
No
Contact Form |
1 Form A |
Contact Rated Load |
300A |
Switching Voltage |
1000VDC |
Current Tolerance |
450A: 60min;1200A: 30s;3000A: 0.6s |
Contact Resistance |
≤1 mΩ(@20A) |
Operate Time |
30Max.ms |
Release Time |
10Max.ms |
Dielectric Withstand |
4000VAC 50 Hz/60 Hz |
Coil Voltage |
12V DC、24V DC |
