| Contact form |
4A |
| Contact rating |
100W |
| Carry current (max) |
2.5A |
| Switching voltage (max) |
1000VDC |
| Contact resistance |
120 mΩ |
| Operate time (max) |
1.0ms |
| Release time (max) |
1.0ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
24V |
Products
产品中心
Number of views:
1000

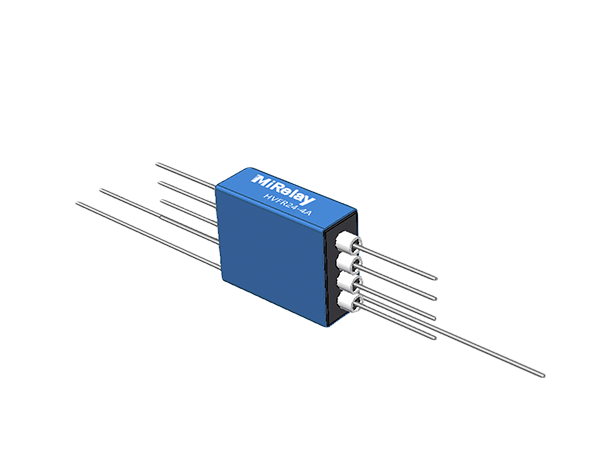

Products name: HVFR24-4A
Category
Product Description：Products
Products info
Parameters
右侧内容显示
Product series:
HVFR
Contact form:
4A
Contact Rating:
100 W
Switching voltage (max):
1000 VDC
Dielectric strength:
4000 VDC
Installation form:
Axial Leads
Optional:
Magnetic shield
| Contact form |
4A |
| Contact rating |
100W |
| Carry current (max) |
2.5A |
| Switching voltage (max) |
1000VDC |
| Contact resistance |
120 mΩ |
| Operate time (max) |
1.0ms |
| Release time (max) |
1.0ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
24V |
