| Contact form |
1A |
| Contact rating |
100W |
| Carry current (max) |
8.5A |
| Switching voltage (max) |
500VDC |
| Contact resistance |
80 mΩ |
| Operate time (max) |
2.0ms |
| Release time (max) |
2.0ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
12V |
Products
产品中心
Number of views:
1000

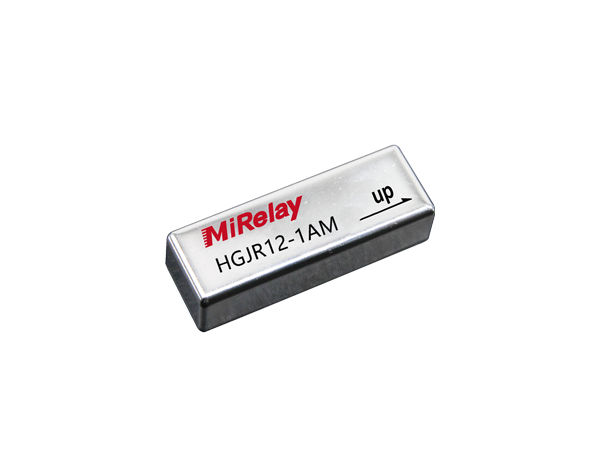

Products name: HGJR12-1AM
Category
Product Description：Products
Products info
Parameters
右侧内容显示
Product series:
HGJR
Contact form:
1A
Contact Rating:
100 W
Switching voltage (max):
500 VDC
Dielectric strength:
4000VDC
Installation form:
In-line
Optional:
Standard
| Contact form |
1A |
| Contact rating |
100W |
| Carry current (max) |
8.5A |
| Switching voltage (max) |
500VDC |
| Contact resistance |
80 mΩ |
| Operate time (max) |
2.0ms |
| Release time (max) |
2.0ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
12V |
