| Contact form |
1C |
| Contact rating |
100W |
| Carry current (max) |
8.5A |
| Switching voltage (max) |
2000VDC |
| Contact resistance |
80 mΩ |
| Operate time (max) |
1.5ms |
| Release time (max) |
1.5ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
5V |
Products
产品中心
Number of views:
1000

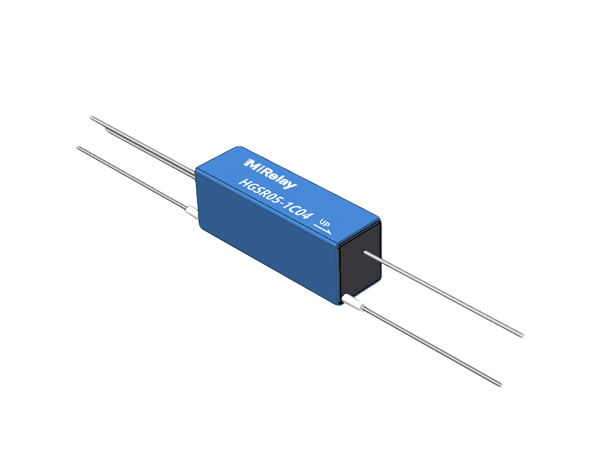

Products name: HGSR05-1C04
Category
Product Description：Products
Products info
Parameters
右侧内容显示
Product series:
HGSR
Contact form:
1C
Contact Rating:
100 W
Switching voltage (max):
2000VDC
Dielectric strength:
4000VDC
Installation form:
In-line
Optional:
Magnetic shield
| Contact form |
1C |
| Contact rating |
100W |
| Carry current (max) |
8.5A |
| Switching voltage (max) |
2000VDC |
| Contact resistance |
80 mΩ |
| Operate time (max) |
1.5ms |
| Release time (max) |
1.5ms |
|
Dielectric strength |
4000VDC |
| Coil voltage |
5V |
We could not find any corresponding parameters, please add them to the properties table
