Contact form |
1A |
Contact rating |
50W |
Carry current (max) |
3.0A |
Switching voltage (max) |
1000VDC |
Contact resistance |
80 mΩ |
Operate time (max) |
2.0ms |
Release time (max) |
2.0ms |
Dielectric strength |
2000VDC |
Coil voltage |
24V |
Products
产品中心
Number of views:
1000

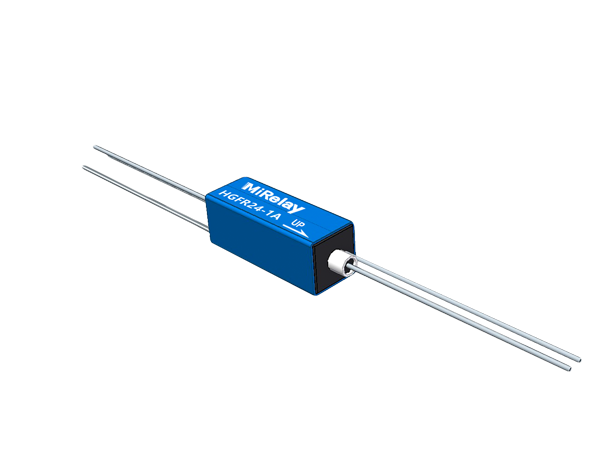

Products name: HGFR24-1A
Category
Product Description:Products
Products info
Parameters
右侧内容显示
Product series:
HGFR
Contact form:
1A
Contact Rating:
50 W
Switching voltage (max):
1000 VDC
Dielectric strength:
2000VDC
Installation form:
Axial pin
Optional:
Magnetic shield
Contact form |
1A |
Contact rating |
50W |
Carry current (max) |
3.0A |
Switching voltage (max) |
1000VDC |
Contact resistance |
80 mΩ |
Operate time (max) |
2.0ms |
Release time (max) |
2.0ms |
Dielectric strength |
2000VDC |
Coil voltage |
24V |
