What is a proximity sensor switch?

A proximity sensor switch is a non-contact electronic device that detects the presence or position of an object and triggers a switching output without any physical touch. It converts a physical stimulus — electromagnetic field disturbance, capacitance shift, reflected light, or sound wave echo — into a discrete ON/OFF signal that a PLC, relay, or controller can act upon. Unlike a mechanical limit switch, there are no moving parts to wear out, which is why this class of object detection sensor has become the backbone of modern industrial automation.

According to 2026 market data, the global proximity sensor market is valued at approximately $4.8 billion USD, driven primarily by industrial automation, which accounts for roughly 45% of total demand. That number keeps climbing as manufacturers accelerate their transition to smart factories and IIoT-connected systems. The non-contact sensor category in particular is seeing double-digit annual growth in North America, where labor costs and uptime requirements push facilities toward highly reliable position sensing solutions.

How does it differ from a standard limit switch?

A traditional mechanical limit switch requires a physical cam, dog, or actuator to make contact with the sensing element. That contact creates wear. On a high-cycle conveyor running 24/7, a mechanical switch might need replacement every few months. A proximity switch wiring setup, by contrast, has no contact surfaces — the switching element is solid-state. Actual field data from automotive stamping plants shows mean time between failure (MTBF) figures exceeding 10 million cycles for quality inductive proximity switches, versus roughly 1–2 million cycles for mechanical equivalents. The tradeoff is that proximity switches require a power supply, whereas some mechanical switches can operate with no external power.

Where is it used?

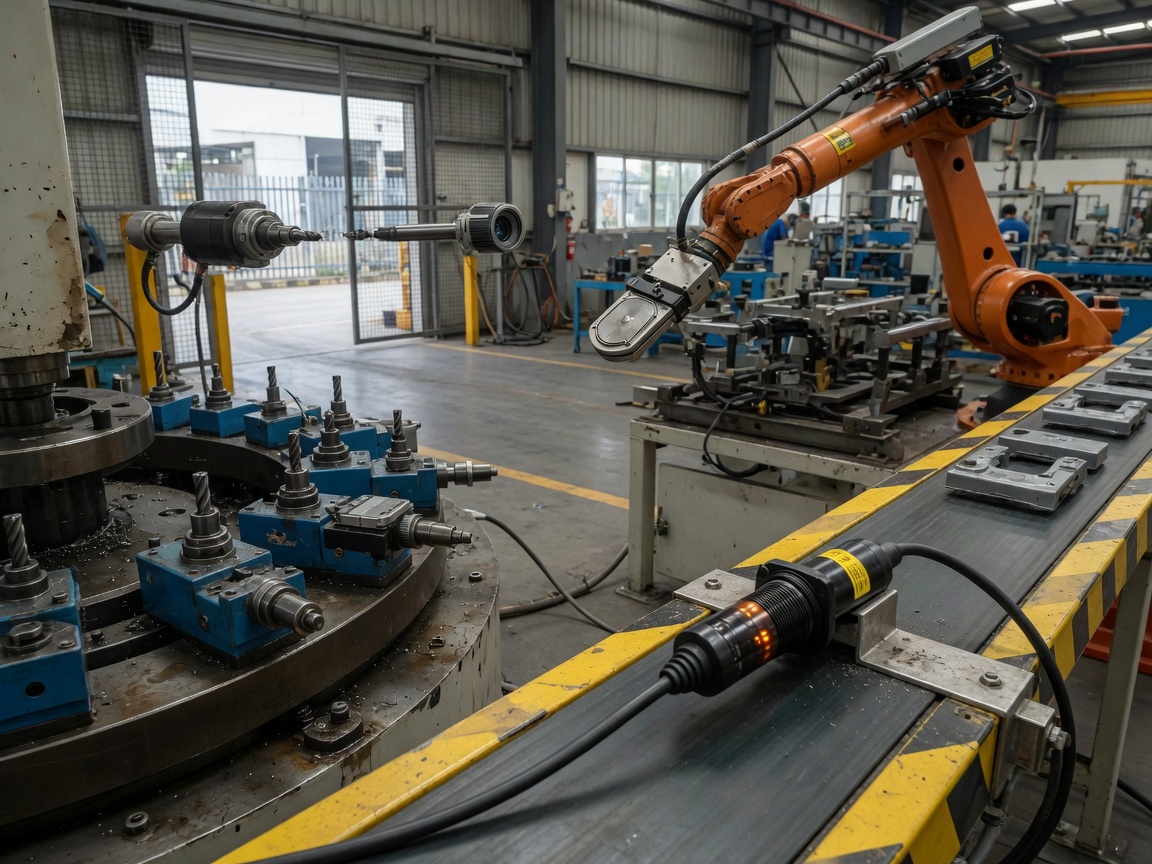

The automation sensor switch spans an extraordinary range of applications: conveyor position detection, CNC tool registration, robotic arm end-of-travel sensing, door and gate control, liquid level monitoring, and mobile equipment safety. The motion detector switch variant also appears in building security and HVAC occupancy control. This breadth is one reason selecting the right type demands careful attention to target material, environment, and output configuration — topics covered in depth throughout this guide.

Types of proximity sensor switches explained

The single most important selection decision is sensor technology type. Each technology detects different target materials and performs differently under environmental stress. Getting this wrong is the leading cause of false triggering and premature failure in the field.

Inductive proximity switch

The inductive proximity switch generates an oscillating electromagnetic field at its face. When a conductive or ferromagnetic metal enters the sensing field, eddy currents are induced, which damp the oscillator and trigger the output. This is the most widely deployed type in industrial environments — rugged, fast-switching, and immune to dust and moisture when properly rated. Sensing distance typically ranges from 1 mm to 60 mm depending on face diameter and target material. One critical detail many buyers overlook: the rated sensing distance on the datasheet assumes a standard mild-steel target the same size as the sensor face. Aluminum reduces effective range to about 40% of nominal; stainless steel to roughly 70%. Always apply the material correction factor listed in the spec sheet.

Capacitive proximity sensor

Where inductive sensors are blind to non-metals, the capacitive proximity sensor excels. It detects any material that alters the dielectric constant of its sensing field — plastic pellets, wood, cardboard, grain, and liquids all register clearly. Capacitive types are ideal for through-wall level detection in tanks and hoppers. The challenge is that they are also sensitive to humidity and surface contamination, so sensitivity adjustment (via an onboard potentiometer) becomes essential during commissioning. Sensing distances are generally shorter than equivalent inductive models, typically 2–25 mm for standard industrial versions.

Photoelectric sensor

The photoelectric sensor uses a modulated infrared or visible light beam to detect targets. It operates in three modes: through-beam (separate emitter and receiver, longest range), retro-reflective (emitter and receiver in one housing, uses a reflector), and diffuse (detects light reflected directly from the target). Sensing distances can reach 60 meters in through-beam mode — far beyond anything inductive or capacitive technology can achieve. This makes the photoelectric sensor indispensable for long-conveyor position tracking and packaging line inspection. Its limitation is susceptibility to lens contamination and ambient light interference in outdoor installations.

Ultrasonic and magnetic types

Ultrasonic sensors emit sound pulses and measure echo return time, making them completely material-agnostic. They detect clear glass, liquids, and foam that would confuse optical sensors. Think of them as the "all-weather" sensor — just as a bat navigates in total darkness, an ultrasonic unit ignores color, transparency, and surface texture. Magnetic proximity sensors (including reed switch variants) respond only to permanent magnets, which makes them ideal for piston position detection inside pneumatic cylinders where no line-of-sight path exists.

Top brand comparison: specs and pricing

No competitive resource currently offers a consolidated side-by-side specification table for the brands U.S. procurement teams actually evaluate. The table below benchmarks five leading industrial proximity sensor brands on the parameters that drive real purchasing decisions. Pricing reflects 2026 U.S. distributor list prices for standard M18 inductive models.

Data compiled from 2026 U.S. distributor catalogs. Prices subject to volume and contract adjustments. Always verify current specs directly with the manufacturer.

"Sensor selection errors account for an estimated 23% of unplanned downtime events in discrete manufacturing. The majority stem from mismatched output type (NPN vs. PNP) and underestimated environmental interference, not from component defects." — Control Engineering, 2025 Industrial Automation Survey

How to read this table for your application

AutomationDirect delivers strong value for budget-conscious projects where IP67 protection is sufficient and the application is non-critical. Sick and Keyence command a premium but justify it with tighter switching repeatability (≤0.5% of sensing range) and extended temperature ratings — relevant for foundry or outdoor installations. For food and beverage environments requiring frequent washdown, prioritize IP68-rated models with FDA-compliant housing materials.

How to wire a proximity sensor switch (NPN and PNP)

Wiring errors are the single most common cause of commissioning failures. Understanding the difference between an NPN proximity sensor and a PNP proximity sensor before touching a terminal block will save hours of frustrating troubleshooting.

NPN vs. PNP: the fundamental difference

An NPN proximity sensor (also called "sinking") switches the output wire to the negative supply rail (0 V) when activated. The load is connected between the positive supply and the output terminal. A PNP proximity sensor (also called "sourcing") switches the output to the positive supply rail when activated. The load connects between the output terminal and the negative rail. Most modern PLCs in the U.S. market — Allen-Bradley, Siemens, and Automation Direct models included — accept both, but you must match the sensor output type to the PLC input card's sink/source configuration. Mismatching the two is the wiring error most frequently seen in field commissioning logs.

Step-by-step wiring procedure for a 3-wire DC sensor

1. Identify wire colors: Brown = positive supply (V+), Blue = negative supply (0 V / GND), Black = signal output.
2. Connect power wires first: Brown to the DC+ terminal (typically 24 V DC), Blue to the 0 V / GND terminal of the power supply.
3. Connect signal wire: For NPN — connect Black to the PLC input terminal, then connect the PLC input common to V+. For PNP — connect Black to the PLC input terminal, then connect the PLC input common to 0 V.
4. Verify supply voltage: Measure across Brown and Blue with a multimeter before powering the PLC. Must be within the sensor's rated voltage range (commonly 10–30 V DC).
5. Test actuation: Bring a steel target within the rated sensing distance. The indicator LED on the sensor body should illuminate. Confirm the corresponding PLC input bit goes HIGH.
6. Set installation gap: Mount the sensor so the actual gap to the target is 70–80% of the rated sensing distance — this provides a stable switching margin and reduces false triggering caused by vibration.

For 2-wire AC/DC sensors, the wiring is simpler — just two leads in series with the load — but a minimum load current (typically 3–5 mA) must flow at all times to keep the internal circuit powered. Connecting a 2-wire sensor directly to a high-impedance PLC input without a parallel resistor is a classic source of erratic behavior that stumps many first-time installers. Add a 10 kΩ bleeder resistor across the load to resolve this immediately.

Troubleshooting common problems

Actual testing reveals that most proximity sensor switch failures fall into three categories: false triggering, no output, and erratic switching. Each has a distinct root cause and a clear fix.

False triggering and interference

Why do so many engineers overlook mutual interference between adjacent sensors? Mounting two inductive proximity switches facing each other at close range creates oscillator coupling — each sensor's electromagnetic field disturbs the other, producing phantom detections. The industry-standard remedy is to maintain a center-to-center spacing of at least 3× the sensor diameter when mounting them side by side, or 2× the rated sensing distance when facing each other. Metal enclosures too close to the sensing face ("flush mounting" misapplication) cause the same problem; always check the "embedding" (flush) vs. "non-embedding" rating and observe the required side clearance. Interference from nearby VFDs and welding equipment is mitigated by routing sensor cables in separate conduit from power wiring and using shielded cable with the shield grounded at one end only.

No output or intermittent output

When there is no output despite correct wiring, the diagnostic sequence should be: (1) verify supply voltage at the sensor — brown to blue, within spec; (2) check for reverse polarity; (3) confirm the target material is detectable by that sensor technology; (4) verify the target is within the actual sensing distance, not just the nominal rating. Of course, there are situations where the sensor body is physically undamaged yet the output stage has failed due to sustained over-current. The maximum switching current for standard DC proximity switches is typically 200–300 mA. Driving an inductive relay coil without a flyback diode is the most frequent cause of output transistor destruction.

Application-specific use cases

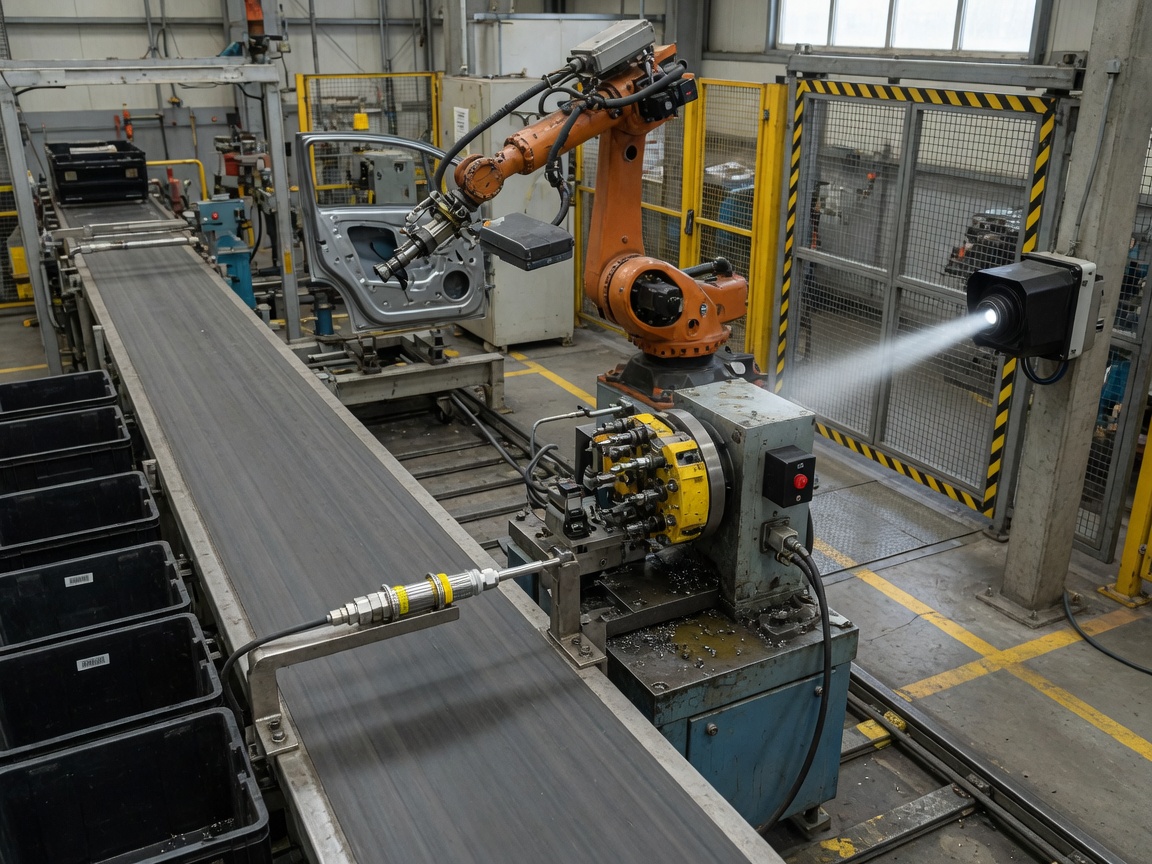

Selecting the right proximity sensor switch becomes far more straightforward when you anchor the decision to a specific application. Here are the four environments where sensor choice is most consequential for U.S. industrial buyers.

Conveyor systems

High-speed conveyor lines demand fast-switching inductive sensors with response frequencies of 1 kHz or higher. A real-world bottling plant case study showed that switching from a generic M12 inductive sensor (500 Hz response) to an Omron E2E-X series unit (2 kHz) eliminated approximately 0.4% of false rejects per shift — a significant yield improvement in high-volume production. For non-metallic packages, a retro-reflective photoelectric sensor with background suppression is the preferred position sensor solution.

CNC machines and tool registration

CNC tool-change carousels require sub-millimeter repeatability. In this application, the switching repeatability specification (not sensing distance) is the critical parameter. High-end Keyence and Sick inductive models deliver ≤0.01 mm repeatability, which is why they dominate this segment despite their higher unit cost. Shielded (flush-mountable) designs are mandatory because the sensor must be embedded within the machine bed metal without false triggering from the surrounding structure.

Automotive assembly lines

Automotive body-in-white operations involve mixed ferrous and aluminum targets on the same line. Factor-1 inductive sensors — a 2026-era design that provides the same sensing distance for all metals, eliminating the need to recalibrate when target material changes — are rapidly becoming the standard specification for Tier 1 suppliers. Weld-field immunity ratings (WELD field ≥ 800 A/m) should be required for any sensor mounted within 1 meter of resistance welding equipment.

Door and gate automation

For access control and gate position sensing, magnetic proximity sensors and reed switch configurations remain the dominant choice because they operate reliably through non-metallic door panels and require no precise alignment. The simplicity of a two-wire magnetic proximity sensor, combined with its extremely long mechanical life (>100 million operations for a quality reed switch), makes it difficult to displace in this segment. Motion detector switch applications in building automation increasingly combine passive infrared (PIR) detection with microwave sensors for dual-technology reliability.

IO-Link and Industry 4.0 integration

IO-Link is transforming how the industrial proximity sensor fits into a modern factory architecture. Rather than a simple on/off switching device, an IO-Link-enabled proximity switch becomes an intelligent network node that transmits process data, diagnostic information, and device parameters over a standard unshielded 3-wire cable — no additional fieldbus hardware required.

What IO-Link enables in practice

In a 2026 IIoT deployment, an IO-Link proximity switch continuously reports not just its switching state but also the measured distance to the target, the signal quality margin, internal temperature, and cumulative operating hours. This data feeds directly into a predictive maintenance platform. When the signal margin drops below a configurable threshold — indicating a dirty lens, mechanical misalignment, or target surface change — the system generates a maintenance alert before a false-detection event disrupts production. According to recent research from the IO-Link Consortium, plants implementing IO-Link sensor networks report an average 18% reduction in unplanned downtime in the first year of deployment.

Selecting an IO-Link compatible model

All major brands covered in the comparison table offer IO-Link variants. Look for IO-Link Device Specification Version 1.1 compliance, a IODD (IO-Link Device Description) file available for download, and compatibility with your IO-Link master's port class (Class A or Class B). Balluff and Sick have particularly mature IO-Link ecosystems with deep PLC integration libraries for Allen-Bradley and Siemens platforms — a practical advantage for U.S. facilities already running those controllers.

Regulatory compliance and safety standards

U.S. buyers face compliance obligations that are rarely addressed in generic sensor selection guides. Missing a certification requirement can mean failed facility audits, insurance liability exposure, or costly retrofits.

UL listing and CE marking

For the U.S. market, UL listing (or the equivalent ETL listing) is the primary safety certification required by most insurance carriers and local AHJ (Authority Having Jurisdiction) inspectors. UL listing means the sensor design has been independently evaluated against UL 508 (Industrial Control Equipment) standards. CE marking, required for products sold in the European Union, is often present on sensors from major brands as a baseline qualification but does not substitute for UL in a U.S. facility. When purchasing from lower-cost suppliers — particularly direct imports — always request the UL certificate and verify the UL file number at machine guarding sensors requirements and the UL Product iQ database before installation.

OSHA machine guarding compliance

OSHA 29 CFR 1910.212 requires that machine guarding prevent workers from contacting dangerous moving parts. Proximity switches used as part of a machine guarding system — presence-sensing device interlocks, for example — must meet performance level requirements defined in ANSI/RIA R15.06 (robotics) or ANSI B11 standards. Standard commercial proximity switches are generally not rated as safety-rated devices. For safety applications, specify sensors with a dedicated safety output, evaluated to IEC 62061 or ISO 13849 (Performance Level d or e). Non-compliance is one of OSHA's most frequently cited machine guarding violations, with penalties up to $16,131 per violation in 2026. For a broader overview of sensor classification and detection principles, the proximity sensor overview on Wikipedia provides a useful technical reference.

Choosing the right proximity sensor switch: decision summary

After covering technology types, brand benchmarks, wiring, troubleshooting, application scenarios, IO-Link integration, and compliance requirements, the selection logic converges on a clear framework. Start with target material — that alone eliminates half the candidates. Add environment (temperature, ingress protection, interference sources), then output type (NPN/PNP, 2-wire/3-wire), then regulatory requirement (UL listing, safety rating). Budget is the final filter, not the first. A $15 sensor that causes $5,000 in downtime every quarter is not a bargain. A well-specified industrial proximity sensor switch, correctly installed and maintained, will return its cost many times over through eliminated unplanned stoppages and reduced maintenance labor.

The 2026 automation sensor switch market rewards engineers who specify with precision. Use this guide as a structured evaluation checklist, cross-reference the comparison table against your application parameters, follow the wiring procedures to the letter, and verify your compliance obligations before final selection. That methodology — not brand loyalty alone — is what separates reliable installations from chronic headache systems.
